Benchmark "rutsch3a" : contact boundary
(x-y-z-coordinates)

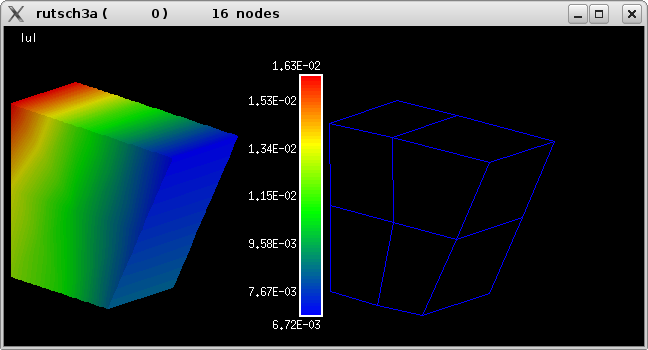

Picture 1: basic mesh

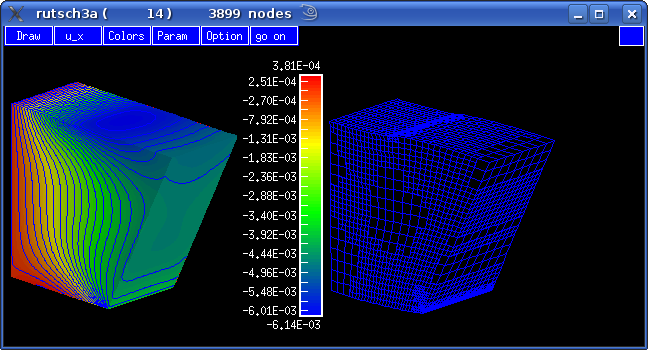

Picture 2: u_x displacement

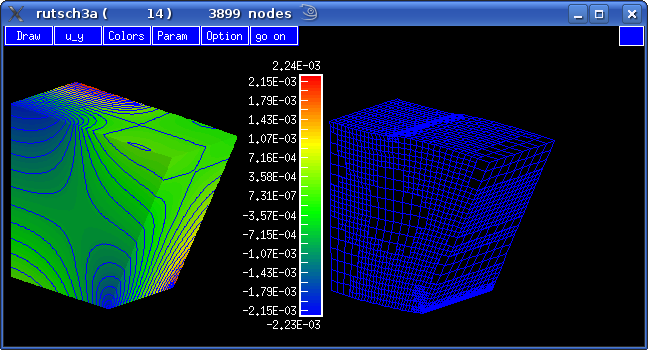

Picture 3: u_y displacement

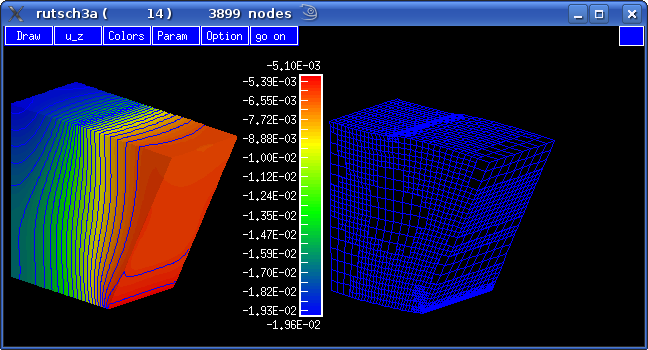

Picture 4: u_z displacement


Material coefficients:E-Modul ny
200000 0.3
volume force : f
(0,0,0)
Boundary conditions:
Dirichlet-type: u_1=0; u_2,u_3 free (at left side, x=0)
contact boundary (pitch)
Neumann-type: g=(0,0,-1000)(top,x in (0,1) only)


Typical behavior of estimated relative error:

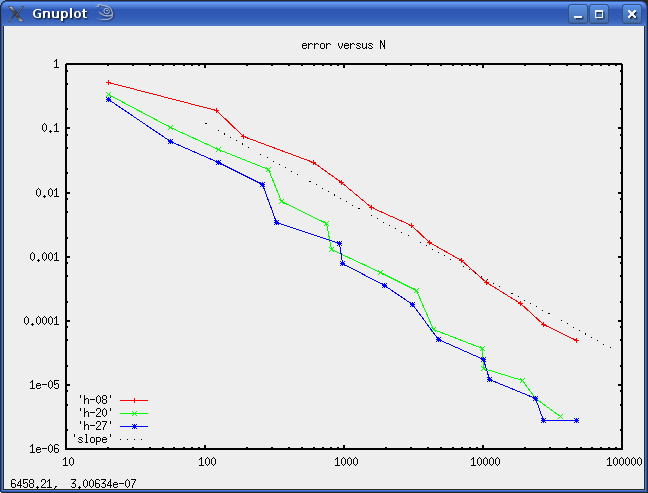

(Das typische Verhalten des geschaetzten rel. Fehlers) (Legend)





here some RUNs with times / iteration numbers / etc.
